CIVIL ENGINEERS'EFFORT: THE GREAT BURJ KHALIFA


How the Burj was built

The Burj is not a 'storm
machine', says Hyder; Emaar boss praises those who built the Burj; The highest
contracting job in the world; Pushing the limit
Vision is a word you hear a lot in the GCC. But just imagine if you will, sitting
down in a meeting and deciding to construct the world’s tallest building in your
city. Not one that is going to be the tallest by a few dozen metres, and relinquish
its title to another tower, in another city, within a few years, but the tallest by a
massive margin.
If you can imagine that, then you can get a feeling for the vision that went into coming up with the Burj Khalifa, now open
and officially the world’s tallest tower, a whopping 300m-plus taller than the next nearest rival. More than six years in the
making and not fully-finished just yet, the project was and is a massive undertaking, one that has paired bold vision with a
brave leap into the engineering unknown.
Making it happen not only needed vision, but cash and a fair whack of design and engineering genius. Pushing at the
envelope of engineering means trying new things, developing new techniques and doing a ton of testing.
And while it’s hard to find a construction contractor or supplier who doesn’t claim to have been involved in the making of the
Burj Khalifa, CW takes a look at what those who were really there had to do to build an icon.
To read on, click here or on the numbers below.
Finance
Once you’ve had the vision, the real work doesn’t start until you find a way to pay. The final finished cost of the Burj Khalifa
will be tough to calculate, once a complete interior fit-out is taken into account.
Mohamed Alabbar, Emaar chairman, recently suggested a final budget of US $1.5 billion. Mashreqbank, Emirates Bank
International and Abu Dhabi Commercial Bank formed a syndicate to provide finance way back in 2005.
The triumvirate of banks signed a financing agreement with Korean contractor Samsung Corporation and its project partners
Belhasa Six Construct and Arabtec. The good news is that around 90% of saleable space was sold off-plan, helping ensure
that money never ran tight.
Design
Skidmore, Owings & Merrill was the architecture firm behind the design and engineering of the tower.
The design team developed what has become known as a spiraling “Y” shaped plan, which was used to shape the structural
core of the building.
Key considerations included the impact of wind forces and ‘constructability’, architecture cant for practical construction
considerations. The design employs a ‘buttressed core’, which has each wing of the building buttressing the others via a sixsided
central core.
It is this central core that provides the structure’s torsional resistance. The design of wall and corridor intersections means
that all of the vertical concrete is used to support both gravity and lateral loads.

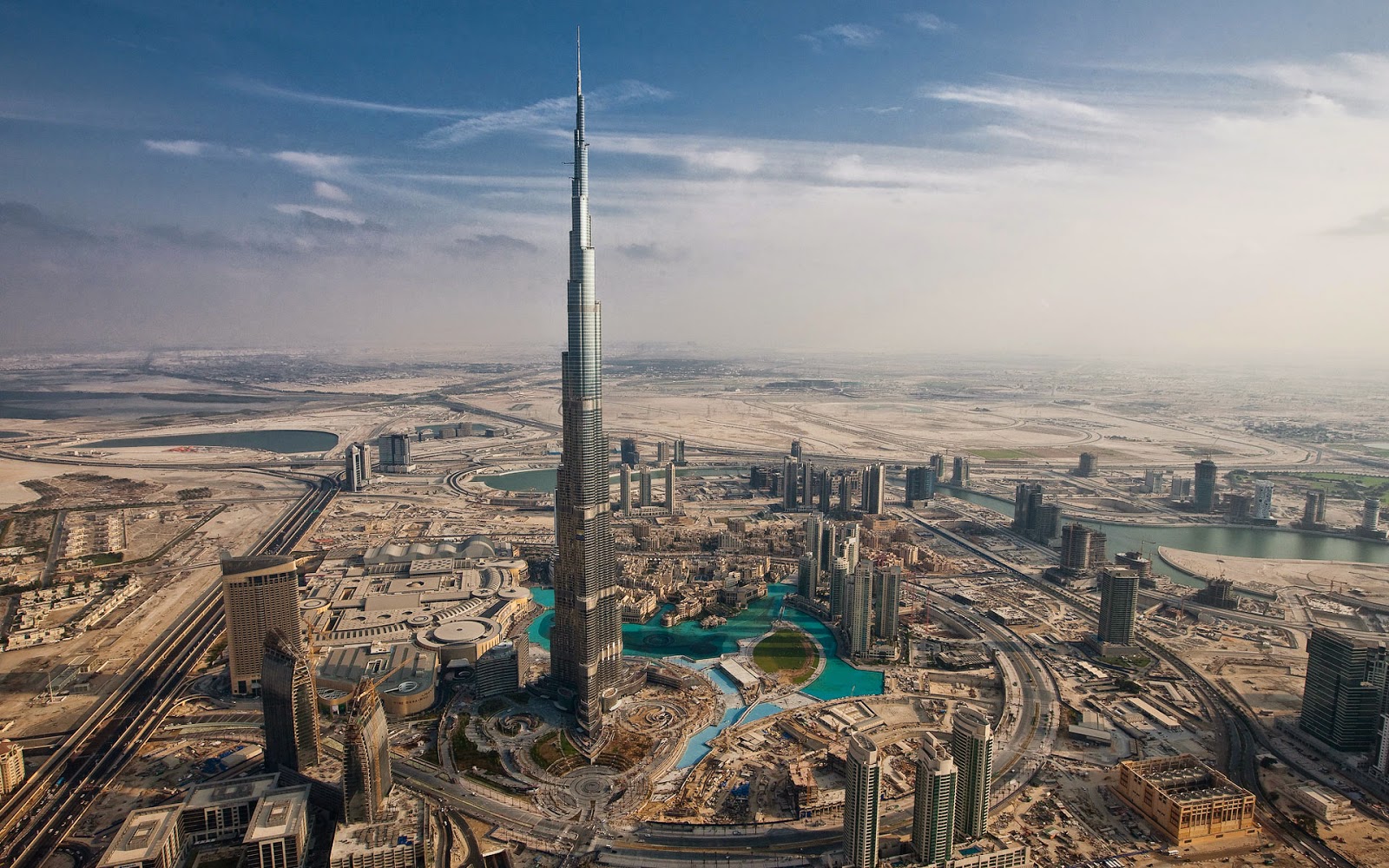

As the building spirals in height, the wings set back to provide many different floor plates. These setbacks also have the
advantage of providing a different width to the tower for each differing floor plate. This stepping and shaping of the tower
12/9/2014 How the Burj was built
has the effect of disrupting the flow of the wind over the height of the building.
Foundations
If you want to build high, you must first dig deep, driving foundations down well below the surface. The tower’s
superstructure is supported by a large reinforced concrete mat, which is in turn supported by 192 bored reinforced concrete
piles.
The mat is 3.7m thick, and was constructed in four separate pours totaling 12,500 cubic metres (m³) of concrete. Bauer
Spezialtiefbau, with Middle East Foundations, took on much of the piling work, which required bores to be sunk for cast insitu
piles, to a depth of 43 metres.
Known by some as the ‘Rolls-Royce’ of the drill rig world, the Bauer BG40 can deliver, as the name suggests, 40nm of torque.
Of course, there isn’t a situation that we could imagine where you would need such heavy power for drilling piling holes –
half of this would be sufficient for most situations. However, a reserve of torque means there is less stress put on the
machine, so it can get on with what it is required to do.
Around 45,000m³ of concrete, weighing more than 110,000 tonnes, were poured for the foundations – that’s equivalent to
18 Olympic sized swimming pools – with 192 piles running to a depth of over 50m.
A high density, low permeability concrete was used in the foundations, as well as a cathodic protection system under the
mat. This is an effort to counter the effects of the highly-corrosive ground water.
Bores for the 192 deep piles were sunk in 2004. Each of them was designed to be cast in situ, and as such needed to be
very deep. Ground conditions at the Burj site were favourable – the soft, but not unstable, soil proved easy to dig into.
Other sites in the region are not so fortunate – naturally occurring limestone requires breaking with a breaker attachment
first.
Next: Concrete and steel, Pumping and Cladding.
Concrete and steel
You know already that over 45,000m³ of concrete was used to in construction of the tower’s foundations. The overall
construction process will have used 330,000 m³ of concrete and 39,000 tonnes (43,000 ST; 38,000 LT) of steel rebar. Laid
end to end, the rebar used in the tower would extend over a quarter of the way around the world.
For the construction of the tower, BASF developed a special concrete mix that was pumped to a height of more than 600
metres (see ‘Pumping’) without segregating. Thanks to BASF’s admixture Glenium Sky 504, the concrete could be worked
on for more than three hours before hardening took place.
This allowed for a shorter construction time and gives the building a longer useful life, making it more sustainable.
Pumping
In November, 2007, the highest reinforced concrete corewalls were made using concrete pumped from ground level to a
vertical height of 601 metres. This broke the previous pumping record for a building of 470m on the Taipei 101 and the
previous overall world record for vertical pumping of 532 metres for an extension to the Riva del Garda Hydroelectric Power
Plant in 1994.
The concrete pressure during pumping to this level was nearly 200 bars.
When the record was set, a photocall was arranged and a distance of 601 metres was reported as the new record.
However, it was discovered shortly afterwards that the concrete needed to go a little further and so an extension was
added to move the concrete to 606 metres.
The mix was able to reach such astounding heights by running through a high-pressure trailer mounted pump (a Putzmeister
14000 SHP D). The concrete required approximately 40 minutes from the filling of the hopper to its discharge from the
delivery line.
The concrete volume in the line amounted to approximately 11m³ with this installation height – meaning there was roughly
12/9/2014 How the Burj was built
26 tonnes on the pump after every piston stroke – or five big elephants.
Over a period of about 32 months, the high pressure pump and two others delivered more than 165,000m³ of high-strength
concrete, which, using our preferred unit of measurement, is about 66 Olympic sized swimming pools.
Cladding
Exterior cladding of Burj Khalifa began in May 2007 and was completed in September 2009. At the initial stage of installation,
the team progressed at the rate of about 20 to 30 panels per day and eventually achieved as many as 175 panels per day.
Burj Khalifa has set a new world record for the highest installation of an aluminium and glass facade, at 512 metres.
The total weight of aluminium used on Burj Khalifa is equivalent to that of five A380 aircraft and the total length of stainless
steel bull nose fins is 293 times the height of Eiffel Tower in Paris.
The exterior cladding is comprised of reflective glazing with aluminum and textured stainless steel spandrel panels and
stainless steel vertical tubular fins. Close to 26,000 glass panels, each individually hand-cut, were used in the exterior cladding
of the tower.
Over 300 cladding specialists from China were brought in to do the work. The cladding system is designed to withstand
Dubai's extreme summer heat, and to further ensure its integrity, a World War II airplane engine was used for dynamic wind
and water testing.
The curtain wall of Burj Khalifa is equivalent to 17 football (soccer) fields or 25 American football fields.
Next: Cranes, Dismantling and People
Cranes
They’re graceful, mysterious and it seemed for a time everybody’s favourite topic. The high level cranes at the Burj were
always enigmatic, enshrouding the operator of the very highest unit in mystery.
There were stories circulating about ‘the Indian on top of the world’ which speculated that he was paid a king’s ransom, and
that he had been made an honorary UAE citizen.
All of this was really nothing more than idle gossip – the figure had become more of a mystery man through Emaar’s refusal
to let the media have any access to him, though this was most likely due to the developer keeping the exact height of the
structure a closely guarded secret – a figure which the high-level operators undoubtedly knew. Despite this conundrum,
there is quite a lot that we do know about the high-level cranes. For a start, there was not one, but three Favelle Favco
cranes that served right up to level 156.
Given that the machines worked 24 hours for much of the project’s duration it would be safe to assume that there was a
team of at least nine drivers and many other technicians to ensure safe operation. (In fact, Emaar recently confirmed that a
35-strong workforce were on hand to run the cranes, though this is a drop in the ocean compared to the total of 12,000
employees on the project.)
Usually, the cranes’ loads consisted of steel reinforcement beams, but welding equipment, scaffolding, gensets and even
tanks of fuel for the diesel powered cranes all needed to be lifted to the correct floor.
Dismantling
Installing the three high-level cranes was relatively straightforward as sections of the cranes could be moved up the tower
with the completion of new levels.
Getting the towers down however, required a little more lateral thinking. The first high-level crane was moved in November
2007 down to level 99 in order to serve as a future recovery crane. The next high-level crane came down in October 2008,
leaving one prominent machine apparently stuck at the top, while people on the ground speculated how it might come
down.
The answer was that another small crane had to be lifted to floor 159. With a crane on this floor as well as the one on level
99, the dismantling process was ready to begin. The process started with the crane climbing down from its working height of
12/9/2014 How the Burj was built
over 700 metres.
The crane removed its own mast sections and lowered them to the ground until the boom and power pack were at the
position of the Level 159 recovery crane.
From there, the Level 159 recovery crane dismantled the remainder of the main crane, lowering the pieces of boom, mast
and power pack to the recovery crane at Level 99, which further lowered them to the ground.
The dismantling of the cranes at Burj Khalifa was indeed a finely orchestrated set piece – except that the artists here were
huge machines.
The three cranes on the tower were all diesel Favelle Favco units, of various specifications.
This type of diesel-hydraulic crane is popular on ‘supertall’ skyscrapers, due to a useful turn of speed and power. However,
one of the main challenges was actually getting the fuel to the required height – there are no petrol stations on the 159th
floor.
People
Burj Khalifa was an international collaboration between more than 60 contracting and consulting companies from all over the
world. At the peak of construction, over 12,000 workers and contractors were on site every day, representing more than
100 nationalities. According to Emaar, construction will have taken 22 million man hours.
Next: Fire safety, MEP and Elevators & lifts

Fire safety
Fire safety and speed of evacuation were prime factors in the design of Burj Khalifa. Concrete surrounds all stairwells and the
building service and fireman's elevator will have a capacity of 5500kg and will be the world's tallest service elevator.
Since people can't reasonably be expected to walk down 160 floors, there are pressurised, air-conditioned refuge areas
located approximately every 25 floors.
MEP
The mechanical, electrical and plumbing services for Burj Khalifa were developed in co-ordination during the design phase with
the co-operation of the architect, structural engineer and other consultants.
Hyder Consulting was appointed as a supervision consultant with responsibility for overseeing execution of the MEP. An ETAHitachi-
Voltas joint venture was awarded the building’s MEP contract.
Seven double-storey mechanical floors house the equipment that bring Burj Khalifa to life. Distributed around every 30
storeys, the mechanical floors house the electrical sub-stations, water tanks, pumps and air handling units that are essential
for the running of the building.
These mechanical areas typically serve the 15 floors above and below them. The primary distribution route for services is
through the main risers within the central core of the structure, which remains the same size to level 150 despite the overall
building shape tapering with height.
MEP operations are managed by a central BMS, with local control panels in each plant room, all connected by fibre-optic
cabling. During construction, deliveries of MEP equipment tended to be made during the night, with the podium and
basement used as storage space. Cranes, hoists and service lifts were used to transport the various materials.
The Burj Khalifa's water system supplies an average of 946,000 litres (250,000 gallons) of water daily. At peak cooling, Burj
Khalifa will require about 10,000 tonnes of cooling, equal to the cooling capacity provided by about 10,000 tonnes of melting
ice.
Dubai's hot, humid climate combined with the building's cooling requirements creates a significant amount of condensation.
This water is collected and drained in a separate piping system to a holding tank in the basement car park.
The condensate collection system provides about 15 million gallons of supplement water per year, equal to about 20
12/9/2014 How the Burj was built
Olympic-sized swimming pools. This water is to be redirected to the gardens surrounding the tower.
The tower's peak electrical demand will be an estimated 36mW, equal to about 360,000 100 Watt bulbs operating
simultaneously. According to one report, the tower has more than one hundred thousand light fittings, 375km of fire alarm
cabling and 34km of chilled water pipes.
Elevators & lifts
Burj Khalifa will be home to 57 elevators and eight escalators. The building service/fireman's elevator will have a capacity of
5500kg and will be the world's tallest service elevator.
The Burj Khalifa features distinct sections: residential apartments, serviced apartments and hotel rooms, and corporate
offices. Elevators have been arranged in zones to serve these different audiences, with what is known as a ‘sky lobby’
system.
The sky lobby is an intermediate floor where residents, guests and executives will change from an express elevator to a local
elevator, which stops at every floor within a certain segment of the building. Burj Khalifa’s sky lobbies are located on level 43,
76 and 123 and will include a lounge area and kiosk, amongst other amenities.
All elevators have been supplied and installed by Otis. No elevators are installed to travel all 160 floors of Burj Khalifa. Instead,
they are grouped to align with the floor layout, offering passengers a direct express service to their destination by bypassing
other floors.
The main service elevator, positioned in the central core of Burj Khalifa, has the world’s highest elevator rise at 504 metres –
more than the height of Taipei 101 in Taiwan (448 metres). It travels at nine metres per second and also has the world’s
longest travelling distance for an elevator. Another service lift in the spire has the world’s highest landing point at 636.9
metres.
Double-deck elevators, with built-in light and entertainment features including LCD displays, will exclusively serve visitors to At
The Top, Burj Khalifa, the world’s highest outdoor observation deck situated on level 124, as well as office users transferring
at the sky lobby at level 123.
These double-deck units – used for the first time in the Middle East by Otis – are the highest rising double-deck elevators in
the world and will travel at the speed of 10 metres per second. They have a capacity of 12 to 14 people per cab.
Next: Podium and access, Landscaping and Fitout
Podium and access
The podium provides a base anchoring the tower to the ground, allowing access from three different sides to three different
levels of the building.
Fully glazed entry pavilions constructed with a suspended cable-net structure provide separate entries for the Corporate
Suites at B1 and Concourse Levels, the Burj Khalifa residences at Ground Level and the Armani Hotel at Level 1.
The number of underground car parking spaces is reported to be 3000, which suggests that the owners are keen for people
to use the nearby metro station and downtown light railway for access.
Landscaping
At the foot of the mighty Burj sits the ‘The Park’, an 11 hectare expanse of gardens, trees and water features. What is
perhaps most noteworthy about The Park is that is irrigated using a water collection system that recovers the condensation
from the tower’s cooling equipment.
This provides the park with around 15 million gallons of water a year – or enough to fill 20 Olympic-sized swimming pools. The
Park was designed by SOM, designer of the tower itself, and SWA Group of California. WET, the designers of The Dubai
Fountain, developed the park’s six water features.
Fitout
The interior design of Burj Khalifa’s public areas was done by the Chicago office of Skidmore, Owings & Merrill LLP and was led
12/9/2014 How the Burj was built
by award-winning designer Nada Andric. It features glass, stainless steel and polished dark stones, together with silver
travertine flooring, Venetian stucco walls, handmade rugs and stone flooring.
Over 1000 pieces of art from prominent Middle Eastern and international artists will adorn Burj Khalifa and the surrounding
Emaar Boulevard. Many of the pieces were specially commissioned by Emaar.
The two main contractors for the interior fitout were DEPA and Fino International (click for separate interviews).
At one point, interior contracting specialist DEPA famously told Arabian Business magazine that the job of fitting out the
tower was a ‘nightmare’. The company won a US $600 million contact to oversee the fit-out of nearly 1000 residential and
serviced apartments as well as corridors and lift lobbies.
Despite the challenges of moving men and materials up to as high as the 100th floor, the company got the job done in
reasonable time.
Next: Spire and Window Washing
Spire
The crowning glory of Burj Khalifa is its telescopic spire comprised of more than 4000 tons of structural steel. The spire was
constructed from inside the building and jacked to its full height of over 200 metres (700 feet) using a hydraulic pump.
In addition to securing the Burj Khalifa's place as the world's tallest structure, the spire is integral to the overall design,
creating a sense of completion for the landmark. The spire also houses communications equipment.
The top four floors of the Burj have been reserved for communications and broadcasting. These floors occupy the levels just
below the spire.
Window Washing
Access for the tower's exterior for both window washing and façade maintenance is provided by 18 permanently installed
track and fixed telescopic, cradle equipped, building maintenance units. The track mounted units are stored in garages,
within the structure, and are not visible when not in use.
The manned cradles are capable of accessing the entire facade from tower top down to level seven. The building
maintenance units’ jib arms, when fully extended, will have a maximum reach of 36 metres with an overall length of
approximately 45 metres.
When fully retracted to parked position, the jib arm length will measure approximately 15 metres. Under normal conditions,
with all building maintenance units in operation, it will take three to four months to clean the entire exterior facade.
Next: World Records, Urban Myths and Fantastic Facts
World Records
At over 828 metres and more than 160 stories, Burj Khalifa holds the following records:
Tallest building in the world
Tallest free-standing structure in the world
Highest number of stories in the world
Highest occupied floor in the world
Highest outdoor observation deck in the world
Elevator with the longest travel distance in the world
Tallest service elevator in the world
Urban Myths
Among the many facts and figures about the Burj Khalifa, here are some that just aren’t true:
The building will be the headquarters of the Dubai Base Jumping Association
Nothing within a 10km radius of the Burj Khalifa will ever be struck by lightning again
12/9/2014 How the Burj was built
A construction worker, known only as Dev, set the unofficial record for the Burj Khalifa vertical marathon, running to
the top of the building in 23:45
The crane driver lived at the top of the Burj Khalifa for the duration of the construction and has been made a UAE
citizen as a reward for his perilous task
The Burj can be seen from Iran
More levels can be added to the building at a later date, should any other structure surpass its height
The Burj Khalifa can be seen from space
Fantastic Facts:
28,261 Glass cladding panels make up the exterior of the tower and its two annexes.
1325 Days after excavation work started in January 2004, the Burj Khalifa became the tallest free-standing structure
in the world.
12,000 Workers and contractors were on site every day at the peak of construction.
124 Storeys up is the publicly accessible observation deck, with an outdoor terrace.
606 Metres is the height to which concrete was pumped, a world record for concrete pumping.
504 Metres is how high the Burj Khalifa’s main service lift travels, the most of any elevator.
57 Elevators will move occupants around.
31,400 Tonnes of rebar were used in the structure of Burj Khalifa.
5500 KG is the carrying capacity of the service lift.

No comments:

Post a Comment
